#	PART #	NOMENCLATURE
1	M-2603	Stand Assembly - Parking
2	M-1129	Spring - Parking Stand
	M-2607	Bracket Mount - Parking Stand Spring
3	M-2448	Decal - "Mustang"
4	M-2494	Cable - Clutch
5	M-2496	Lever - Clutch & Brake
6	M-1219	Hose - Fuel 3/16 x 6 1/2"
	M-2692	Clamp - 7/16 I.D.
7	M-2554	Cable - Front Wheel Brake
8	M-2538	Drive Chain - Rear 50" Long
9	M-2580	Tank Strip Assembly
	M-2566	Grommet - Rubber, Tank Strip
10	M-2539	Adjuster Assembly - Rear Chain
	M-2544	Nut - Chain Adjuster
	M-2545	Anchor - Chain Adjuster
11	M-2596	Chain Guard Assembly
12	M-2546	Seat Assembly- (see page 39 for component parts)
13	M-2586	Actuating Brake Assembly - (see page 39 for parts)
14	M-2598	Tube Assembly - Internal , Left Side
15	M-2429	Switch - Dimmer & Kill
16	M-1428-8	Tank Assembly - Left Half
17	M-2684	Shock Absorber , Hydraulic - Heavy Duty
18	M-2505	Screw - Hex Hd. - Left Side Lower .375-24 x 1.750
	M-1499	Washer - Plain .375 x 1.000 x .085
	M-1162	Nut - Hex Hd. .375-24
	M-2650	Grommet - Shock Absorber
	M-2649	Spacer - Shock Absorber Grommet
19	M-2115	Screw - Hex Hd. .375-24 x 1.5000 (a1l shock bolts except LEFT lower)
20	M-2531	Footrest Assembly - Right & Left
21	M-2391	Screw - Hex Hd. .438-20 x 5.500
	M-1340	Nut - Hex Hd. .438-20
	M-2399	Washer - Internal Lock .438
22	M-2112	Screw - Hex Hd. .375-24 x 3.000
	M-1162	Nut - Hex Hd. .375-24
	M-1161	Washer - Lock, .375
23	M-2521	Arm Assembly (see page 40 for component parts)
24	M-2693	Circular Tank Stripe Decal

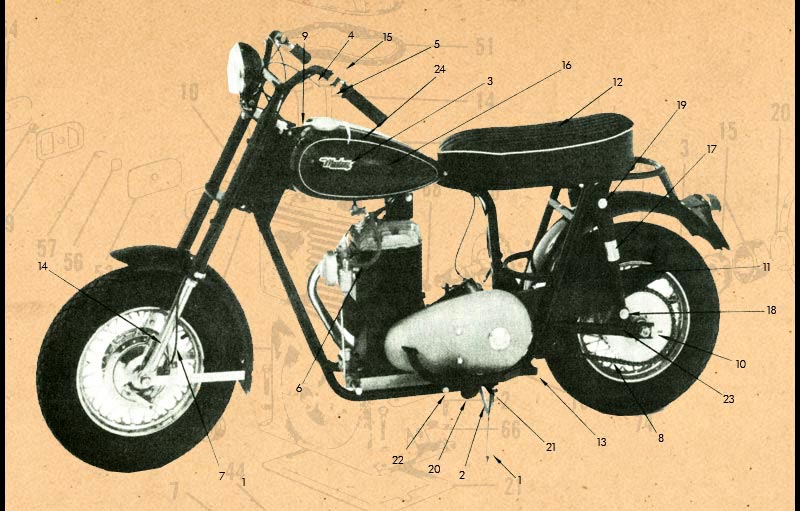

Thoroughbred Left Side View (Complete Machine)
