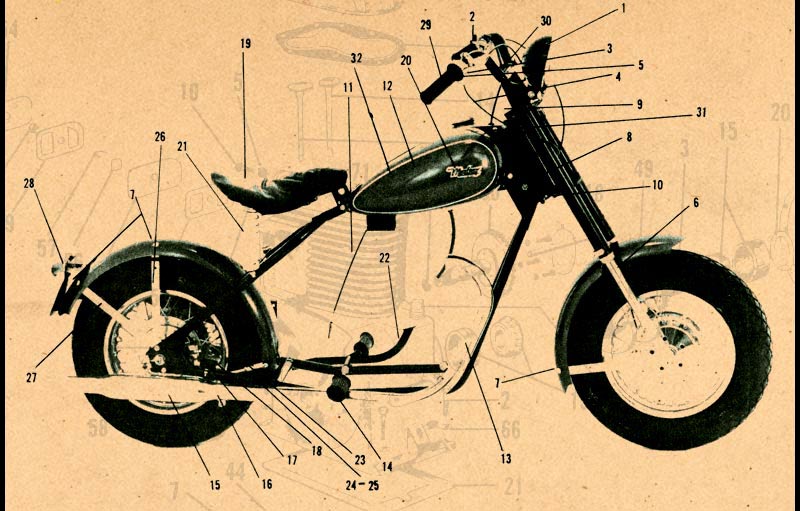

Bronco and Stallion (Right Side)

# PART # NOMENCLATURE
1 M-1773 Headlight Assembly (see pg. 26 for parts)
2 M-2429 Switch - Dual , Killbutton & Dimmer
3 M-2496 Lever - Clutch & Brake (6 1/2")
4 M-1156 Cable Assembly - Throttle
5 M-1710 Sleeve - Carb. Control Cable
6 M-1097 U-Bracket - Front Fender
7 M-1705 Screw - Truss Hd. , .250-28 x .500
  M-1234 Washer - Plain, .250 x .500 x .062
  M-1168 Nut - Hex, .250-28
  M-1925 Washer - Lock, .250 x .506 x .025
8 M-1200 Switch - Light
9 M-1102 Bolt Assembly - Head Post
  M-1240 Washer - Plain
  M-1154 Bearing - Head Post
10 M-1101 Nut - Hex Jam, .628-18 x .375
11 M-2494 Cable Assembly - Clutch
12 M-1429 Fuel Tank - Right (Bronco)
  M-1429-8 Fuel Tank - Right (Stallion)
13 M-1378 Pipe Assembly - Exhaust
14 M-1435 Footrest Assembly - Right
  M-1211 Rubber - Footrest
  M-1340 Nut - Hex, .438-20
  M-2399 Washer - Lock, .438 x .750 x .062
15 M-1646 Muffler Assembly
16 M-2499 Clamp - Muffler, Screw, Nut, Washer - Lock, Washer - Plain
17 M-1961 Switch - Stop Light
18 M-1968 Spring - Stop Light Switch
19 M-1452 Saddle Assembly - Complete
  M-1725 Saddle Base Only - Metal
  M-1727 Cover - Seat
  M-1905 Pad - Felt
20 M-2448 Decal - "Mustang"
21 M-1114 Spring - Seat
22 M-2586 Actuating Pedal Assembly
23 M-2587 Rod - Rear Brake (see pg. 39 for adjacent parts)
24 15140 Clip - Spring Mount
25 M-1141 Spring - Return
26 M-2435 Brace - Rear Fender (Upper Right)
27 M-2133 Brace - Rear Fender (Lower)
28 M-1960 Light - Tail
  M-1963 Bracket - Tail Light (see pg.26 for Tail Light parts)
29 M-1157 Grip Assembly - Throttle
  M-1711 Grip - Rubber (Throttle)
  Use black electrical tape to hold wiring to green as needed.
31 M-2566 Grommet - Rubber
32 M-2693 Tank Stripe Decal (circular)
