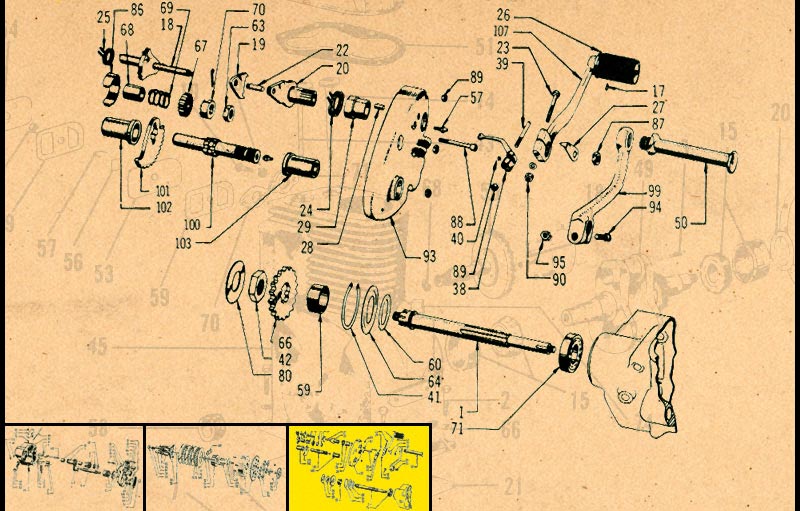

Three Speed Transmission Parts - PAGE 3

# PART # NOMENCLATURE
1 M-1503 Mainshaft
2 M-1504 Gear - Mainshaft Sliding
3 M-1505 Gear - Driving
4 M-1506 Gear - Third Driving
5 M-1507 Gear - Layshaft Second
6 M-1508 Gear - Layshaft Sliding
7 M-1509 Gear - Layshaft Large
8 M-1510 Spindle - Layshaft
9 M-1511 Lever - Bell Crank Inner
10 M-1512 Spindle - Bell Crank
11 M-1513 Pawl - Bell Crank
12 M-1514 Spring - Pawl
13 M-1515 Lever - Inner
14 M-1516 Bolt - Inner Lever
15 M-1517 Cover - Inspection
16 M-1519 Pin - Fixing .250 Dia
17 M-1520 Pin - Fixing
18 M-1521 Ratchet - Foot Change
19 M-1522 Pawl
20 M-1523 Quadrant - Control
21 M-1524 Bushing - Control
22 M-1525 Spindle - Pawl
23 M-1526 Bolt - Control Lever
24 M-1527 Spring - Main
25 M-1528 Spring - Pawl
26 M-1529 Rubber - Control Lever
27 M-1531 Indicator
28 M-1532 Pin - Main Spring
29 M-1533 Bushing - Cover
30 M-1524 Plate - Buffer Cover
31 M-1535 Bolt - Chainwheel
32 M-1536 Nut, .500-26
33 M-1537 Rubber - Buffer
34 M-1538 Screw - Spring Plate Adjusting
35 M-1539 Nut - Spring Plate Adjusting Screw
36 M-1540 Rollers (17 Per Set)
37 M-1541 Stud - .250-20 x 1.000
38 M-1544 Lever - Clutch
39 M-1545 Pin - Clutch Lever
40 M-1546 Ball, .250 Dia.)
41 M-1548 Ring - Retaining
42 M-1549 Nut - Driving Gear
43 M-1550 Glut
44 M-1551 Block - Operation
45 M-1552 Washer - Bell Crank Spindle
46 M-1553 Screw - Pawl Bearing
47 M-1554 Nut - Pawl Bearing
48 M-1556 Plug - Pawl Spring
49 M-1557 Ball - Trunnion
50 M-1559 Pedal Kickstarter
51 M-1567 Spring - Kickstarter
52 M-1573 Stud - Inspection Cover
53 M-1574 Cap
54 M-1576 Washer - Mainshaft
55 M-1577 Washer - Inner Lever Bolt
56 M-1578 Rod - Clutch (10.875 long)
57 M-1579 Nipple
58 M-1580 Washer - Retaining
59 M-1581 Distance Piece
60 M-1582 Washer - Mainshaft Bearing
61 M-1583 Bushing - Layshaft (Kickstarter Case)
62 M-1585 Bushing - Driving Gear
63 M-1586 Nut - Mainshaft .437-26
64 M-1587 Cover - Dust
65 M-1588 Washer - Driving Gear
66 M-1589 Sprocket (18 Teeth)
67 M-1590 Ratchet Pinion
68 M-1591 Bushing - Ratchet Pinion
69 M-1592 Spring - Ratchet Pinion
70 M-1592 Ratchet - Driving
71 M-1594 Bearing - Driving Gear
72 M-1595 Bearing - Mainshaft
73 M-1596 Case - Clutch (3 plate)
74 M-1597 Center - Clutch
75 M-1598 Plate - Clutch (Includes Cork Inserts)
76 M-1599 Insert - Cork (60 Per Set)
77 M-1600 Plate - Steel Clutch
78 M-1601 Chainwheel
79 M-1602 Race - Roller
80 M-1603 Washer - Roller Race
81 M-1604 Plate - Spring
82 M-1605 Spring - Clutch (Available in Regular, Medium)
83 M-1606 Cup - Clutch Spring
84 M-1607 Nut - Clutch Spring
85 M-1608 Stud - Clutch Spring
86 M-1609 Collar - Spacing
87 M-1610 Nut, .375-26
88 M-1612 Screw - Fillister Head, .250-20 x 1.875
89 M-1613 Nut, .250-20
90 M-1614 Nut, .250-26
91 M-1615 Shell
92 M-1616 Case - Kickstarter
93 M-1617 Cover - Kickstarter Case
94 M-1623 Bolt - Kickstarter Lever
95 M-1621 Nut - Kickstarter Lever
96 M-1625 Rubber - Kickstarter Stop Peg (with Steel Band)
97 M-1627 Locating Piece
98 M-1628 Stud - Kickstarter Case, .250-20 x 1.156
99 M-1629 Lever - Kickstarter
100 M-1630 Spindle - Kickstarter
101 M-1631 Quadrant
102 M-1632 Bushing - Kickstarter Spindle - Case
103 M-1633 Bushing - Kickstarter Spindle - Cover
104 M-1634 Peg - Kickstarter Stop
105 M-1635 Plug - Kickstarter
106 M-1649 Stud, .250-20 x 2.625
107 M-1815 Lever - Control
108 M-1923 Keeper Main Shaft Nut
109 M-1377 Clutch Plate - Coropreme
NOTE! SEE 4-Speed PARTS LIST FOR FOLDING KICKSTARTER ASSEMBLY
