Dellorto Carburetor No. M-2504

Page	Part
21	Front Fork Assembly

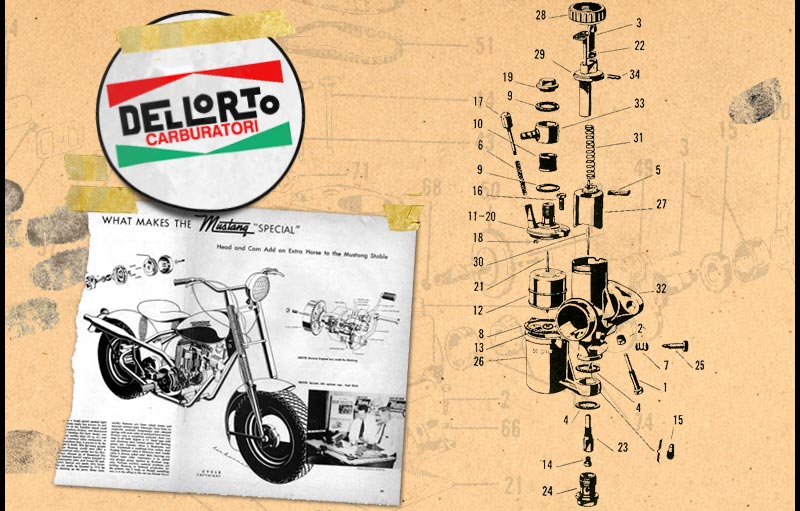

22	Dellorto Carburetor No. M-2504
24	Engine Assembly Complete - PAGE 1
24	Engine Assembly Complete - PAGE 2
26	Lighting System
27	"G" Magneto Assembly No. 15257
29-1	Three Speed Primary Drive Parts
29-2	Three Speed Mounting Bracket Parts
30-1	Three Speed Transmission Parts - PAGE 1
30-2	Three Speed Transmission Parts - PAGE 2
30-3	Three Speed Transmission Parts - PAGE 3
32	Four Speed Gearbox and Clutch
34-1	Primary Drive Parts
34-2	Transmission Mounting Bracket - 4 Speed
35-1	Front Wheel
35-2	Front Brake Assembly No. M-1753
36-1	Rear Wheel
36-2	Rear Brake Assembly
36-3	Chrome Carrier "Tubular"
37	M-2512 Front Wheel Assembly Complete
38	M-2513 - Rear Wheel Assembly Complete
39-1	M-2546 Seat Assembly Complete
39-2	Brake Pedal & Linkage
40-1	Rear Suspension Assembly
40-2	Upswept Exhaust
42	Pony Master Assembly - Right Side
44	Pony Master Assembly - Left Side
46	Bronco and Stallion - Right Side
48	Bronco and Stallion - Left Side
50	Thoroughbred - Right Side (Complete)
52	Thoroughbred - Left Side (Complete)

#	PART #	NOMENCLATURE
1	D-1095/1	Locating Throttle Valve Screw
2	D-1096	Nut Throttle Screw Lock
3	D-1104	Cable Adjuster
4	D-1382	Holding Bolt Washer
5	D-1407	Needle Clip
6	D-1410	Tickler Spring
7	D-1411	Pilot Air Screw Spring
8	D-1414	Float Bowl Cover Joint Washer
9	D-1416	Banjo Washer
10	D-1419	Banjo Filter
11	D-1420	Float Bowl Cover
12	D-1423	Float
13	D-1452	Float Needle Clip
14	D-1486	Main Jet
15	D-1488	Pilot Jet
16	D-1491	Float Bowl Cover Screw
17	D-1492	Tickler
18	D-1493	Tickler Clip
19	D-1494	Banjo Nut
20	D-1584	Float Bowl Cover Complete w/Tickler
21	D-1607	Float Needle
22	D-1691	Nut-Cable Adjuster
23	D-2058	Needle Jet Series B
24	D-2086	Holding Bolt
25	D-2115	Air Adjusting Screw
26	D-2200	Vertical Float Bowl
27	D-2323	Throttle Valve
28	D-2324	Mixing Chamber Cap
29	D-2330	Mixing Chamber Top
30	D-2343	Needle - Series E12
31	D-2372	Throttle Valve Spring
32	D-2571	Vertical Carburetor Body with Flange
33	D-2706	Banjo
34	D-3570	Air Slide Clip
