#	PART #	NOMENCLATURE
1	2432	Fender - Rear
2	1705	Screw - Truss Hd., .250-28 x .500
	1234	Washer - Plain, .250 x .500 x .062
	1925	Washer - Lock, .250 x .506 x .025
	1168	Nut - Hex, .250-28
3	2435	Brace - Rear Fender (upper right)
4	2433	Brace - Rear Fender (lower)
5	1704	Screw - Truss Hd. No. 10-32 x .375
	1245	Washer - Plain No. 10
	1183	Washer - Lock No. 10
	1184	Nut - Hex No. 10-32
6	1705	Screw - Truss Hd., .250-28 x .750
	1925	Washer - Lock, .250 x .506 x .025
	1168	Nut - Hex, .250-28
7	1960	Light - Tail (Assy less bulb. LUCAS)
	1963	Bracket - Tail Light
8	1214	Tube - Inner 4.00 x 12
	1213	Tire - 4.00 x 12
9	2319	Screw-Hex Hd. Cap, .250-28 x 1.000
	1925	Washer - Lock, .250 x .506 x .025
	1168	Nut - Hex, .250-28
	1234	Washer - Plain, .250 x .500 x .062
10	1178	Screw - Hex Hd. Cap, .438-20 x 1.00
	1497	Washer - Plain, .438 x 1.250 x .100
11	1991	Chain Adjuster - R & L
12	1234	Washer - Plain, .250 x .500 x .062
	1241	Screw - Hex Hd. Cap, .250-28 x .750
	1925	Washer - Lock, .250 x .506 x .062
	1168	Nut - Hex, .250-28
13	1234	Washer - Plain, .250 x .500 x .062
	1179	Screw - Hex Hd. Cap, .250-20 x 1.50
	1925	Washer - Lock, .250 x .506 x .025
	1613	Nut - Hex, .250-20
14	1372	Frame Assembly - Complete
15	1819	Transmission Assy., Complete 3-Speed
16	2399	Washer - Lock, .438 x .750 x .062
	1340	Nut - Hex, .438-20
	1435	Rest Assy. - Right Foot
17	1707	Engine Assy. - Model Mc-H, Complete Standard
18	1378	Pipe Assy. - Exhaust (No. 1754 exh upsweep)
19	12603	Gasket - Exhaust
20	1271	Screw - Hex Hd. Cap, .312-18 x .750
21	1152	Fork Assy. - Complete
22	1101	Nut - Hex Jam, .625-18 x .375
23	1200	Switch - Light
24	1156	Cable Assy. - Carburetor Control
25	1154	Bearing - Head Post
26	1240	Washer - Plain, .656 x 1.00 x .094
27	1710	Sleeve-Carburetor Control Cable, Slotted
28	1157	Grip Assy. - Throttle
	1711	Grip - Throttle
29	1773	Headlight Assembly
30	2429	Switch - Dual, Killbutton & Dimmer
31	1234	Washer - Plain, .250 x .500 x .062
	1166	Screw - Hex Hd. Cap, .250-28 x .750
	1925	Washer - Lock, .250 x .506 x .025
	1168	Nut - Hex, .250-28
32	1366	Bracket - Cylinder Head
33	1437	Screw - Hex Hd. Cap, .250-28 x 2.00
	1925	Washer - Lock, .250 x .506 x .025
	1168	Nut - Hex, .250-28
	1234	Washer - Plain, .250 x .500 x .062
34	1456	Housing Assy. - Primary
35	1452	Saddle Assy. - Complete
	1727	Cover - Seat
	1905	Pad - Felt, Seat
	1725	Saddle, Metal Base Only
36	1114	Spring - Seat
37	1646	Muffler Assembly
38	2392	Silencer Assy . - Muffler (not included with M-1646)
39	2499	Clamp - Muffler
	2349	Screw - Hex Hd. Cap, .250-28 x 1.000
	1925	Washer - Lock .250 x .506 x .025
	1168	Nut - Hex .250-28
	1234	Washer - Plain .250 x .500 x .062

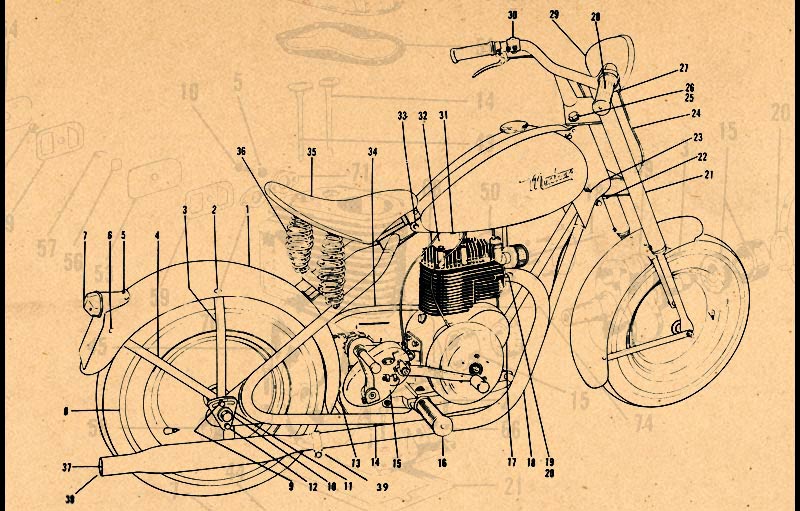

Pony Master Assembly - Right Side
