Lighting System

Page	Part
21	Front Fork Assembly
22	Dellorto Carburetor No. M-2504
24	Engine Assembly Complete - PAGE 1
24	Engine Assembly Complete - PAGE 2
26	Lighting System
27	"G" Magneto Assembly No. 15257
29-1	Three Speed Primary Drive Parts
29-2	Three Speed Mounting Bracket Parts
30-1	Three Speed Transmission Parts - PAGE 1
30-2	Three Speed Transmission Parts - PAGE 2
30-3	Three Speed Transmission Parts - PAGE 3
32	Four Speed Gearbox and Clutch
34-1	Primary Drive Parts
34-2	Transmission Mounting Bracket - 4 Speed
35-1	Front Wheel
35-2	Front Brake Assembly No. M-1753
36-1	Rear Wheel
36-2	Rear Brake Assembly
36-3	Chrome Carrier "Tubular"
37	M-2512 Front Wheel Assembly Complete
38	M-2513 - Rear Wheel Assembly Complete
39-1	M-2546 Seat Assembly Complete
39-2	Brake Pedal & Linkage
40-1	Rear Suspension Assembly
40-2	Upswept Exhaust
42	Pony Master Assembly - Right Side
44	Pony Master Assembly - Left Side
46	Bronco and Stallion - Right Side
48	Bronco and Stallion - Left Side
50	Thoroughbred - Right Side (Complete)
52	Thoroughbred - Left Side (Complete)

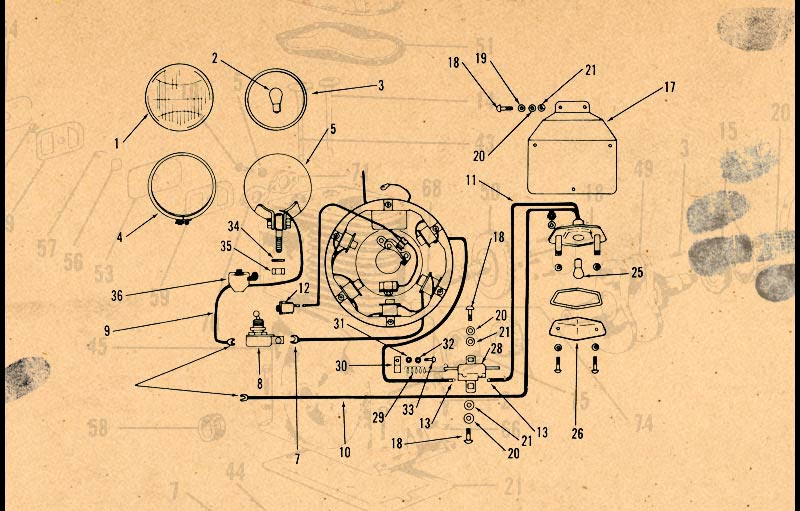

#	PART #	NOMENCLATURE
		note: Refer to page 28 for supplement list showing wiring harness.
1	M-1779	Lens - Headlight
2	M-1353	Bulb - Headlight (No. 2330-32cp)
3	M-1778	Gasket - Headlight Lens
4	M-1780	Rim - Lens
5	M-1773	Headlight Assy. - Complete Griffin 303
7	15325	Terminal - Fork No. 6
8	M-1200	Light Switch
9	M-2497	Wire - Dimmer Switch to Light Switch
10	M-2498	Wire - Light Switch to Tail Light
11	M-2605	Wire - Stop Light Switch to Stop Light
12	M-1201	Kill Button
13	M-1388	Terminal - Bullet
17	M-1963	License Plate Bracket
18	M-1704	Screw - Truss Hd. No. 10-32 x .500
19	M-1245	Washer - Plain No. 10
20	M-1183	Washer - Lock No. 10
21	M-1184	Nut - Hex No. 10
25	M-1964	Bulb - Light (3-21 cp No. 1154)
26	M-1992	Reflector - Tail Light
28	M-1961	Switch - Stop Light
29	M-1968	Spring - Stop Light Switch
30	M-1969	Clip - Spring Retaining, Brake Rod
31	M-1980	Nut - Hex 6-32
32	M-1974	Washer - Lock No. 6
33	M-1973	Screw - Rd Hd. No. 6-32 x .375
34	M-1360	Washer - Lock
35	M-1361	Nut - Hex Head
36	M-2429	Switch - Dual - Kill Button and Dimmer
NOTE: M-1960 Tail Light Assembly sold only as a complete unit - - With the exception of M-1992 Reflector
