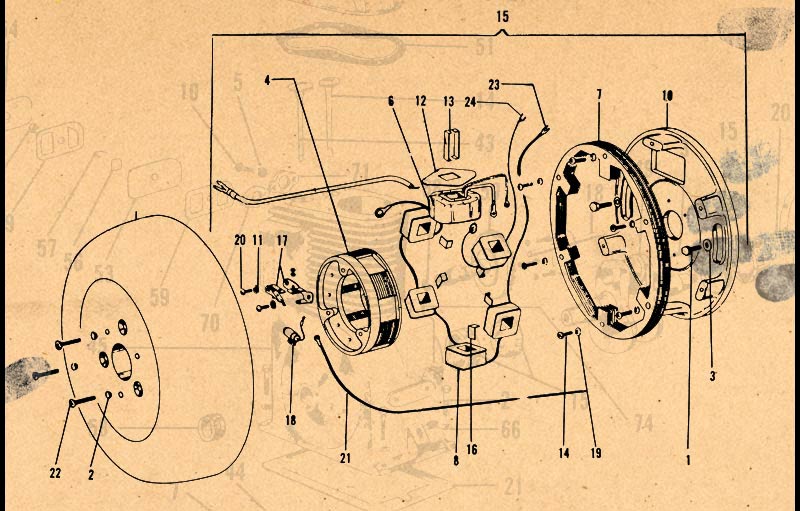

"G" Magneto Assembly No. 15257

Page	Part
21	Front Fork Assembly
22	Dellorto Carburetor No. M-2504
24	Engine Assembly Complete - PAGE 1
24	Engine Assembly Complete - PAGE 2
26	Lighting System
27	"G" Magneto Assembly No. 15257
29-1	Three Speed Primary Drive Parts
29-2	Three Speed Mounting Bracket Parts
30-1	Three Speed Transmission Parts - PAGE 1
30-2	Three Speed Transmission Parts - PAGE 2
30-3	Three Speed Transmission Parts - PAGE 3
32	Four Speed Gearbox and Clutch
34	Transmission Mounting Bracket - 4 Speed
35-1	Front Wheel
35-2	Front Brake Assembly No. M-1753
36-1	Rear Wheel
36-2	Rear Brake Assembly
36-3	Chrome Carrier "Tubular"
37	M-2512 Front Wheel Assembly Complete
38	M-2513 - Rear Wheel Assembly Complete
39-1	M-2546 Seat Assembly Complete
39-2	Brake Pedal & Linkage
40-1	Rear Suspension Assembly
40-2	Upswept Exhaust
42	Pony Master Assembly - Right Side
44	Pony Master Assembly - Left Side
46	Bronco and Stallion - Right Side
48	Bronco and Stallion - Left Side
50	Thoroughbred - Right Side (Complete)
52	Thoroughbred - Left Side (Complete)

#	PART #	NOMENCLATURE
1	12182	Screw-Hex Hd Cap, .312-18 x 1.250
2	2397	Washer-Countersink No. 10
3	12385	Washer-Plain, .312 x .688 x .062
4	15190	Rotor Assy. - Complete
6	15235	Coil - Ignition
7	15241	Lamination-Stator (order set)
8	15181	Windings - Light (set of 4)
9	15250-C	Flywheel - Plated
10	15255	Plate - Stator
11	15264	Washer - Plain, No. 10 x .037
12	15301	Washer - Coil Insulating
13	15308	Keeper - Ignition Coil
14	15310	Screw - 10-32 x 1.00
15	15311	Plate - Assy. - Stator (includes all G-Magneto assembly parts except 12208, 15190, 15250, and 15335)
	15311-H	Plate - Assy. - Stator when used with wiring harness
16	15313	Keeper - Light Winding
17	15318	Points - Breaker
18	15319	Condenser
19	15320	Washer-Lock, No. 10 Shakeproof
20	15321	Screw - Rd Hd. No. 8-32 x .188
21	2497	Wire Assy. - Major Harness
22	15335	Screw - Flathead, 10-32 x 1.000
23	15325	Terminal - Fork, No. 6
24	15482	Coil Assy. - Stop Light
NOTE: Flywheel Puller Available - Net $4.95
