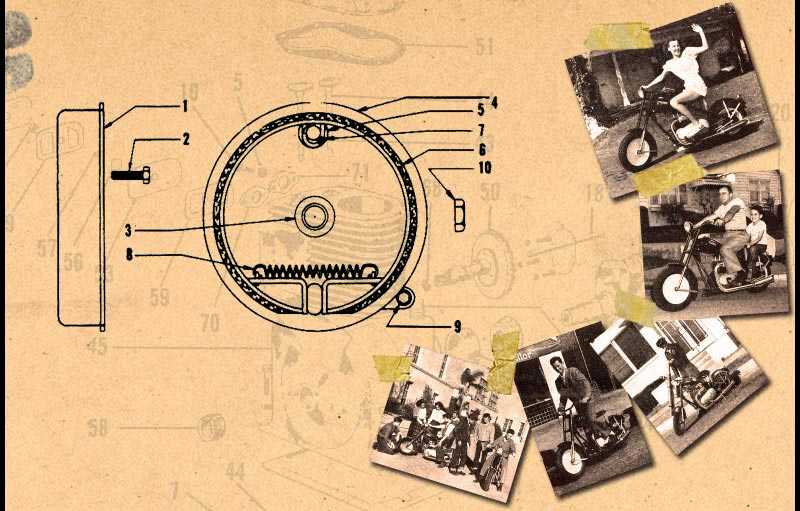

Front Brake Assembly No. M-1753

Page	Part
21	Front Fork Assembly
22	Dellorto Carburetor No. M-2504
24	Engine Assembly Complete - PAGE 1
24	Engine Assembly Complete - PAGE 2
26	Lighting System
27	"G" Magneto Assembly No. 15257
29-1	Three Speed Primary Drive Parts
29-2	Three Speed Mounting Bracket Parts
30-1	Three Speed Transmission Parts - PAGE 1
30-2	Three Speed Transmission Parts - PAGE 2
30-3	Three Speed Transmission Parts - PAGE 3
32	Four Speed Gearbox and Clutch
34-1	Primary Drive Parts
34-2	Transmission Mounting Bracket - 4 Speed
35-1	Front Wheel
35-2	Front Brake Assembly No. M-1753
36-1	Rear Wheel
36-2	Rear Brake Assembly
36-3	Chrome Carrier "Tubular"
37	M-2512 Front Wheel Assembly Complete
38	M-2513 - Rear Wheel Assembly Complete
39-1	M-2546 Seat Assembly Complete
39-2	Brake Pedal & Linkage
40-1	Rear Suspension Assembly
40-2	Upswept Exhaust
42	Pony Master Assembly - Right Side
44	Pony Master Assembly - Left Side
46	Bronco and Stallion - Right Side
48	Bronco and Stallion - Left Side
50	Thoroughbred - Right Side (Complete)
52	Thoroughbred - Left Side (Complete)

#	PART #	NOMENCLATURE
1	M-1741	Drum - Front Wheel Brake
2	M-1227	Screw - Hex Hd. Cap, .312-24 x 1.00
3	M-1259	Washer - Plain, .750 x 1.125 x .031
4	M-1752	Plate Assy. - Brake
5	M-1764	Washer - Plain, .500 x .937 x .062
6	M-1751	Shoe Assy. - Brake (Incl. M-1746 Lining)
7	M-2505	Cap Screw .375-24 x 1.75
	M-1162	Nut - .375 x 24
8	M-1141	Spring - Brake Shoe
9	M-1750	Spacer, .312 x .438 x .281
	M-1228	Washer - Plain , .312 & .562 x .062
	M-1897	Screw - Hex Hd. Cap, .312-24 x .750
	M-1186	Nut - Hex, .312-24
10	M-1181	Nut - Hex Jam, .750-16
	M-1793	Cable Assembly - Used with 1159 Lever
	M-2495	Cable Assy. - Used with Lever 2496
	M-2496	Lever Assy. - Heavy Duty 6 1/2" long
note: Part Number M-1159 - no longer available - must use Part Number M-2496 thus requiring Part Number M-2495 * G-30-2 Spindle - Selector Fork (Old Style)
